Auxiliary boards

Auxiliary boards for FPGA I/O main boards

ATA Bridge

ATA bridge connector

ATA Bridge
The ATA Bridge is an auxiliary board that connects two EDT main boards (PCI SS, PCI GS, or PCIe8 LX) via the ATA-type connectors at the top of the boards. By connecting two main boards directly, the Bridge allows you to greatly increase your resources without using the resources of the host computer. The Bridge... Read more »


Mechanical / fan board

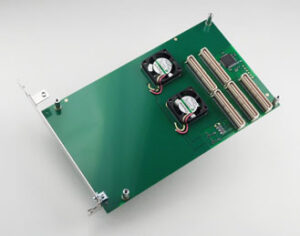

Mechanical / Fan Board
The EDT Fan board is a mezzanine board that provides mechanical support, a backpanel, and a cooling fan for an EDT main board being used as a hardware accelerator. The Fan board can be paired with any EDT main board (PCIe8 LX, PCI GS, or PCI SS) if no other mezzanine board is needed for... Read more »


Time Distribution Board

Time distribution board

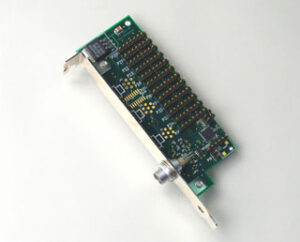

Time Distribution Board
Time Distribution is an auxiliary board that receives a time code signal (from a 1 pps or IRIG-B time code source) and distributes it to multiple EDT main boards to timestamp data. One header allows communication from the main board back to the Time Distribution board to enable control of the signal source. The board... Read more »
