Main boards

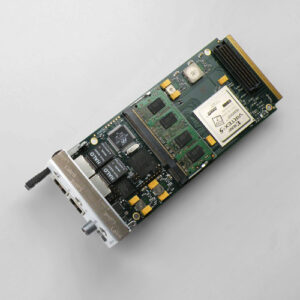

AMC Main Board
The AMC FX5, for AMC MicroTCA (uTCA), is a main board that provides DMA, memory, and FPGA resources to a mezzanine board such as the EDT DRX Dual IF signal receiver. It has a programmable FPGA (Xilinx Virtex 5 XC5VFX70T or optional 100T) with an on-chip PowerPC 440 CPU and 1 GB DDR2 DRAM SODIMM. […]
Read more »

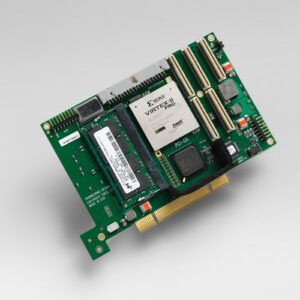

PCI GS Main Board
The PCI GS is a PCI main board that provides powerful high-speed DMA, memory, and programmable FPGA resources. It is designed to support any one of numerous EDT mezzanine boards. The PCI GS has a programmable FPGA (Xilinx Virtex II Pro XC2VP50 or XC2VP70, with two on-chip PowerPC processors) and synchronous memory of up to […]
Read more »
PCI SS Main Board
The PCI SS has been discontinued and is no longer available. The information on this page is provided for use by existing customers. The PCI SS (for PCI) is a main board that provides powerful high-speed DMA, memory, and programmable FPGA resources. It is designed to support any one of numerous EDT mezzanine boards. The […]
Read more »

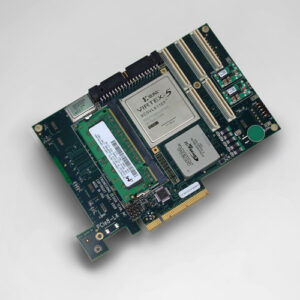

PCIe8 LX Main Board
The PCIe8 LX is a fast, flexible x8 PCI Express board with large memory and FPGA resources, making it an ideal choice as a hardware accelerator. It also has PCIe DMA capabilities and can be used as a base board for an EDT or third-party I/O mezzanine board. The PCIe8 LX provides the following features: […]
Read more »
