Mezzanine boards - electrical

PMC mezzanine boards for electrical interfaces

SSE Mezzanine

SSE Mezzanine

Synchronous serial ECL interface
The SSE is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) for high-speed data transfer. It supports three channels (two input and one output) of ECL. The SSE samples the data on the... Read more »


LVDS / RS422 Mezzanine

LVDS / RS422 Mezzanine

LVDS or RS422 interface board
Features 33 LVDS or RS422 input/output signals Transfer rates up to 90 megabits per second using a single channel; 64 megabits per second using all 16 channels Provides 16 high-speed DMA channels between LVDS or RS422 devices and a PCI... Read more »


ECL Mezzanine

ECL / LVDS-E / RS422-E Mezzanine

Interface for ECL, LVDS, or RS422, with E1/T1 option
The ECL / LVDS-E / RS422-E is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) for high-speed data transfer. This “E-series” board can be ordered ECL, LVDS or RS-422 inputs/outputs in groups of... Read more »


16TE3

16TE3 Mezzanine

Sixteen-channel interface for E3/T3
The 16TE3 is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) for high-speed data transfer. It supports sixteen T3 or E3 interfaces and processes large amounts of communications serial data for complex, user-defined... Read more »


E3/T3, ECL, or LVDS/RS422 interface

Combo 3 Mezzanine

E3/T3, ECL, or LVDS/RS422 interface
The Combo 3 is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) to support multiple standards. It supports E3/T3, ECL, LVDS, or RS422 signals and processes communications serial data for complex, user-defined applications.... Read more »

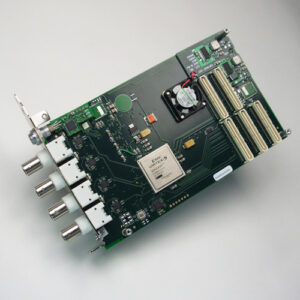

EDT MSDV board

MSDV Mezzanine

Multi-rate serial digital video interface for DVB-ASI/SMPTE
The MSDV is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) for high-speed data transfer. It has four BNC connectors to support up to four serial digital video signals in DVB-ASI/SMPTE format. The... Read more »


HRC Mezzanine

HRC Mezzanine

High-rate communication interface for E4, STS3, OC3/STM1
The HRC is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) for high-speed data transfer. It supports both electrical signals (E4 or STS3) and optical signals (OC3/STM1) in various combinations. The board has... Read more »


Combo2 Mezzanine

Combo 2 Mezzanine

E1/T1, E3/T3, LVDS or RS422 interface
Features Sixteen E1 / T1 line interfaces Four E3 / T3 line interfaces Sixteen LVDS (TIA644 standard) or RS422 differential inputs / output (input or output in groups of four) Large Xilinx FPGA (provided by EDT PCIe8 LX, PCI GS, or... Read more »


Combo Mezzanine

Combo Mezzanine

E1/T1, E3/T3, ECL interface
Features Sixteen E1 / T1 line interfaces Four E3 / T3 line interfaces Sixteen ECL differential inputs / outputs Large Xilinx FPGA (provided by EDT PCIe8 LX, PCI GS, or PCI SS main board – see details below) Two large synchronous static... Read more »
