Camera Link simulators

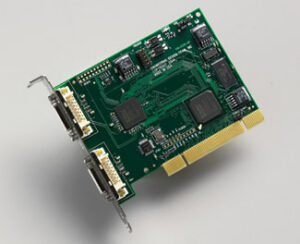

PCI DV CLS
The PCI DV CLS is a Camera Link simulator that generates simulated image data. It uses an easily modified text-based configuration script that describes the timing parameters of the camera to be simulated. C language libraries allow the user to define appropriate responses to UART commands from the interface. Known image data allows easy debug […]
Read more »PCIe8 DV CLS
The PCIe8 DV CLS is a Camera Link simulator that generates simulated image data. It uses an easily modified text-based configuration script that describes the timing parameters of the camera to be simulated. Known image data allows easy debug of interface application code, and system debug when target camera is unavailable. The PCIe8 DV CLS […]
Read more »

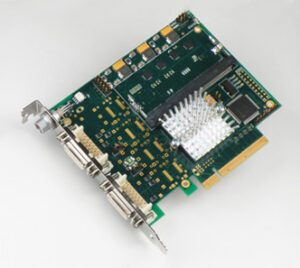

PCIe8 DVa CLS
The PCIe8 DVa CLS is a Camera Link simulator that generates simulated image data. It uses an easily modified text-based configuration script that describes the timing parameters of the camera to be simulated. Known image data allows easy debug of interface application code, and system debug when target camera is unavailable. The PCIe8 DVa CLS has […]
Read more »
VisionLink CLS
The VisionLink CLS is a Camera Link simulator that simulates base mode cameras. The board supports the Camera Link 2.0 spec. This includes 1-tap/8-bit, 2-tap/8-bit, 1-tap/10-bit, 2-tap/10-bit, 1-tap/12-bit, 2-tap/12-bit, 1-tap/14-bit, 1-tap/16-bit, 24-bit RGB, at pixel clock frequencies from 20 to 85 MHz. It outputs board-generated or file-based data to facilitate the development and testing of […]
Read more »
