FPGA I/O

3P Mezzanine

The 3P is a three-port mezzanine board that pairs with a PCI Express main board to provide three independent channels, each supporting an optional SFP or SFP+. Channel 0 supports up to 10GbE(optical), while channels 1 and 2 each support 1GbE (electrical or optical) or OC3/12/48 (STM1/4/16). The 3P mezzanine has a user-configurable FPGA (Xilinx Virtex […]

3x3G Mezzanine

The 3x3G is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) for high-speed data transfer. It has three channels, each having one 3Gb Xilinx RocketIO transceiver and one SFP for either an electrical RJ45 1GbE (1000 Base-T) Ethernet adapter or an optical LC. The 3x3G has four additional […]

AMC Main Board

The AMC FX5, for AMC MicroTCA (uTCA), is a main board that provides DMA, memory, and FPGA resources to a mezzanine board such as the EDT DRX Dual IF signal receiver. It has a programmable FPGA (Xilinx Virtex 5 XC5VFX70T or optional 100T) with an on-chip PowerPC 440 CPU and 1 GB DDR2 DRAM SODIMM. […]

Combo 2 Mezzanine

Features Sixteen E1 / T1 line interfaces Four E3 / T3 line interfaces Sixteen LVDS (TIA644 standard) or RS422 differential inputs / output (input or output in groups of four) Large Xilinx FPGA (provided by EDT PCIe8 LX, PCI GS, or PCI SS main board see details below) Two large synchronous static memory banks or one […]

Combo 3 Mezzanine

The Combo 3 is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) to support multiple standards. It supports E3/T3, ECL, LVDS, or RS422 signals and processes communications serial data for complex, user-defined applications. For details on system requirements and EDT-provided software driver packages, see specifications for your EDT […]

Combo Mezzanine

Features Sixteen E1 / T1 line interfaces Four E3 / T3 line interfaces Sixteen ECL differential inputs / outputs Large Xilinx FPGA (provided by EDT PCIe8 LX, PCI GS, or PCI SS main board see details below) Two large synchronous static memory banks or one memory bank up to 1 GB (also provided by main board – […]

DRX Mezzanine

The DRX is a discontinued product, and is no longer supported. This information is provided for reference only. The DRX is a mezzanine board that pairs with an AMC main board. It has two configurable IF input channels; for each channel, you can choose a lowpass filter or a bandpass filter. The lowpass filter has […]

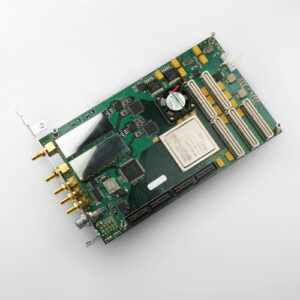

EDT DRX16 Dual digitizer for DSP with 16-bit ADCs

DRX16 Mezzanine

The DRX16 is a mezzanine board that pairs with a PCI Express main board to digitize two independent IF signals via 16-bit ADCs. The DRX16 has a configurable Xilinx Virtex 6 LX FPGA (XC6VLX240T) and two identical ports for 2 to 300 MHz, with independent gain and sample rate settings. EDT firmware and software are […]

ECL / LVDS-E / RS422-E Mezzanine

The ECL / LVDS-E / RS422-E is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) for high-speed data transfer. This “E-series” board can be ordered ECL, LVDS or RS-422 inputs/outputs in groups of four, with an E1/T1 option. Each channel of the ECL / LVDS-E / RS422-E board […]

HRC Mezzanine

The HRC is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) for high-speed data transfer. It supports both electrical signals (E4 or STS3) and optical signals (OC3/STM1) in various combinations. The board has four connector slots; each supports either an electrical BNC 75-W CMI coaxial interface, or an […]

LVDS / RS422 Mezzanine

Features 33 LVDS / RS422 input/output signals Transfer rates up to 90 megabits per second using a single channel; 64 megabits per second using all 16 channels Provides 16 high-speed DMA channels between LVDS or RS422 devices and a PCI computer Fast transfers using a 66 MHz 32-bit PCI Configuration file for 16 synchronous serial […]

MSDV Mezzanine

The MSDV is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) for high-speed data transfer. It has four BNC connectors to support up to four serial digital video signals in DVB-ASI/SMPTE format. The MSDV includes a programmable Xilinx Virtex 5 FPGA and a time code input, which receives […]

Net 10G Mezzanine

The Net 10G is a discontinued product, and is no longer supported. This information is provided for reference only. The Net10G is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) to support multiple standards. It supports electrical or optical Ethernet of up to 10GbE and also multiple SONET […]

OC192 Mezzanine

The OC192 has been discontinued and is no longer available. The A5 is its recommended replacement. The OC192 is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) to support multiple standards. It has two form-factor pluggable transceivers: one XFP to support SONET OC192, SDH STM64, or 10GbE; and […]

OCM 2.7G Mezzanine

OCM 2.7G is a mezzanine board that pairs with an AMC main board to support either 1GbE (optical or electrical ethernet) or OC3/12/48 (STM1/4/16), or both.It is available for either a full-size or a mid-size AMC slot. The OCM 2.7G has two channels each support up to 2.7 Gbits per second via a small form […]

OCMP Mezzanine

The OCMP (formerly OCM) is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) to support 1GbE (electrical or optical), SONET OC3/12/48 (SDH STM1/4/16), or both. The OCMP has two volt-controlled crystal oscillators (VCXOs), either programmable or settable to multiple frequencies. It also has two small form pluggable (SFP) […]

PCI 11W

The PCI 11W is a discontinued product, and is no longer supported. This information is is provided for reference only. >Features Single PCI bus Slot Rates to 8 megabytes per second Compatible with PCI platforms running Windows and Linux Other operating systems can be supported supported contact us for info Supports all standard DR11W […]

PCI 16D

The PCI 16D has been discontinued and is no longer available. The information on this page is provided for use by existing customers, however our ability to provide ongoing support is limited. >Features Single PCI bus slot Continuous input or output Rates to 10 megabytes per second Supports buffered block modes with internal FIFO Programmable control […]

PCI 53B

The PCI 53B has been discontinued, and is no longer supported. This information is provided for reference only. The board provides a complete single slot MIL-STD 1553B interface for PCI bus computers. The 1553B interface is a 1 Mbit per second serial bus interface, used where reliability in extreme environments is essential. The board initializes […]

PCI CD-20

The PCI CD-20 has been discontinued and is no longer available. The PCI CDa usually can be used in its place. The information on this page is provided for use by existing customers; however, our ability to provide ongoing support is limited. >Features Transfer rates up to 20 MB per second 4 KByte FIFO Implements a […]

PCI CD-60

The PCI CD-60 has been discontinued and is no longer available. The PCI CDa usually can be used in its place. The information on this page is provided for use by existing customers; however, our ability to provide ongoing support is limited. >Features Transfer rates up to 60 MB per second. 4 KByte FIFO Implements a […]

PCI CDa

The PCI CDa board provides one high-speed 16-bit parallel channel or an optional 16 synchronous serial channels between an external device and a PCI local bus computer (or optional 16-channel* synchronous serial interface). The device interface uses LVDS- or RS422-compatible driver/receivers connected to a field-programmable gate array (FPGA). The PCI CDa uses direct memory access […]

PCI GP-ECL

The PCI GP-ECL is discontinued and no longer supported; the information below is provided for reference only. Please see the ECL / LVDS-E / RS422-E, which has superseded this product. >Features 1-4 or 16 channels 1-4 data bits per channel (4 channel), 1 clock and 1 data bit per channel (16 channel) ECL compatible driver/receivers Transfer […]

PCI GP-SSD

The PCI GP-SSD has been discontinued and is no longer supported; the information below is for reference only. For comparable products, see EDTs FPGA I/O products. Features Serial rates up to 60 Mbits/sec (4 channel), 4 Mbits/sec (16 channel) Independent clock per channel Standard RS-422 or EIA-644 (LVDS), driver/receivers, or optionally RS-485 (please specify when […]

PCI GP-SSE

The PCI GP-SSE is a legacy product, with limited availablity to existing customers only. Please see the SSE Mezzanine which has superseded this product. >Features 2 channels (one in/out, one in only) 1 data bit per channel ECL compatible driver/receivers Transfer rates up to 400 megabits per second per channel Implements a high-speed DMA channel […]

PCI GS Main Board

The PCI GS is a PCI main board that provides powerful high-speed DMA, memory, and programmable FPGA resources. It is designed to support any one of numerous EDT mezzanine boards. The PCI GS has a programmable FPGA (Xilinx Virtex II Pro XC2VP50 or XC2VP70, with two on-chip PowerPC processors) and synchronous memory of up to […]

PCI SS Main Board

The PCI SS has been discontinued and is no longer available. The information on this page is provided for use by existing customers. The PCI SS (for PCI) is a main board that provides powerful high-speed DMA, memory, and programmable FPGA resources. It is designed to support any one of numerous EDT mezzanine boards. The […]

PCI SSD4

The PCI SSD4 has been discontinued, and is no longer supported. The information on this page is provided for reference only. Features Serial rates up to 15 Mbits/sec 1, 2, or 4 channels per board Independent clock per channel Programmable 1, 2, or 4 data bits per clock RS422 compatible driver/receivers Compatible with PCI platforms running […]

PCIe4 CDa

The PCIe4 CDa is a PCI Express 4-lane interface that enables fast DMA and synchronous I/O to transfer differential (LVDS or RS422) data between an external device and a host computer. The PCIe4 CDa provides one Altera Arria II GX FPGA (EP2AGX45D) which combines PCIe functionality (for DMA) and UI functionality (for I/O).The buffers are […]

PCIe8 G3 A5-10G

The PCIe8 G3 A5-10G is a fast, versatile low-profile PCI Express (PCIe, Gen3) x8 interface, available with either a full or a half-height back panel. It has up to two 10G SFP/+ ports and supports 1/10GbE, OC3/12/48/192 (STM1/4/16/64), or OTU1/2/2e/2f. Each port on the PCIe8 G3 A5-10G has its own reference clock, programmable for 1–808 […]
