Camera Link frame grabbers
cPCI DV C-Link
The cPCI DV C-Link is a Camera Link digital image capture interface (frame grabber) that provides high-resolution image capture for high-resolution CCD and CMOS digital video cameras. The cPCI DV C-Link has two MDR 26-pin connectors to support one medium- or up to two base-mode cameras. The compact, half-length board fits in a CompactPCI bus. […]
Read more »
PCI DV C-Link
The PCI DV C-Link is a Camera Link frame grabber board that provides high-resolution image capture for digital video cameras. The PCI DV C-Link has two MDR 26-pin connectors to support one medium- or up to two base-mode cameras. It supports standard mode control (CC) lines and has an on-board UART for camera control and […]
Read more »
PCI DV C-Link/SC
This PCI DV C-Link/SC has been discontinued. The information on this page is provided for reference only. The PCI DV C-Link SC provides high resolution image capture for Camera Link™ monochrome and color digital cameras. A single MDR 26 pin connector (Camera Link standard) is provided, for one base mode camera. (For dual base or […]
Read more »
PCI DV FOX
The PCI DV FOX is a discontinued product, and is no longer supported. This information is provided for reference only. The PCI DV FOX is a long-range fiberoptic interface that provides high-resolution image capture for Camera Link cameras. It supports one medium- or up to two base-mode cameras, at distances up to 100 kilometers from […]
Read more »

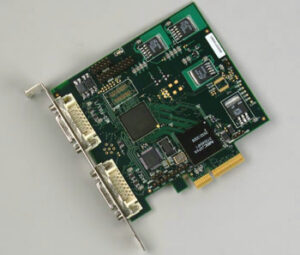

PCIe4 DV C-Link
This product has been superseded by the VisionLink series framegrabbers, the VisionLink F1 and VisionLink F4. The information on this page is provided for reference only. The PCIe4 DV C-Link is a Camera Link frame grabber that provides high-resolution image capture for digital video. It has two MDR 26-pin connectors to support one medium- or […]
Read more »
PCIe4 DVa C-Link
The PCIe4 DVa C-Link is a Camera Link frame grabber that provides high-resolution image capture for digital video. It has two MDR 26-pin connectors to support one full or medium- or up to two base-mode cameras. The PCIe4 DVa C-Link supports the standard mode control lines, has an on-board UART for camera control, external trigger […]
Read more »
PCIe4 DVa FOX
The PCIe4 DVa FOX has been discontinued. Equivalent functionality can be achieved by using RCX C-Link module pairs with the new VisionLink series framegrabber boards. The PCIe4 DVa FOX is a fiberoptic input frame grabber board for Camera Link digital cameras. One, two or potentially four cameras can be remotely located up to 300 meters […]
Read more »PCIe8 DV C-Link
This board has been superseded by the PCIe8 DV<b>a</b> C-Link. The new (DV<b>a</b>) version is functionally backwards compatible with this board, and includes several improvements including higher data rates, optional memory, and PoCL. Refer to the <a href="https://edt.com/product/pcie8-dva-c-link/" title="PCIe8 DVa C-Link">PCIe8 DVa C-Link product page</a> for details.
Read more »
PCIe8 DVa C-Link
This product is being phased out in favor of the new <b><a href="https://edt.com/product/visionlink-f4/" title="VisionLink F4">VisionLink series</a></b> boards. Boards are still available for legacy applications, and we will continue to provide support (hardware, software, repair) for the forseeable future. But anyone with a new application or who expects to be using the boards in systems with newer (Gen2 and Gen3) PCIe chipsets should strongly consider migrating to a VisionLink series board.
Read more »
PMC DV C-Link
The PMC DV C-Link is a Camera Link frame grabber that provides high-resolution image capture for digital video in a PMC form-factor board. It has one MDR-26 pin connector to support a single base-mode camera. It supports standard mode control (CC) lines and has an on-board UART for camera control and external triggering. The PMC […]
Read more »
PMC DV FOX
The PMC DV FOX is a long-range fiberoptic frame grabber that provides high-resolution image capture for Camera Link cameras. It supports one medium- or up to two base-mode cameras, at distances up to 100 kilometers from the host computer, depending on the transceivers used. The PMC DV FOX pairs with one or more EDT RCX […]
Read more »
VisionLink F1
The VisionLink F1 is a 1-lane PCIe framegrabber with one or optionally two SDR26 connectors for up to two base mode Camera Link cameras. It supports standard mode control (CC) lines and has an on-board UART for camera control and external triggering. Optional IRIG-B timecode support is available. The compact board has a half- or […]
Read more »
VisionLink F4
The VisionLink F4 is a 4-lane PCIe framegrabber with two SDR26 connectors for up to two base through full mode Camera Link cameras. It supports standard mode control (CC) lines and has an on-board UART for camera control and external triggering. Optional IRIG-B timecode support is available. The compact board has a half- or full-height […]
Read more »
VisionLink F4 XMC
The VisionLink F4 XMC is a Camera Link frame grabber for XMC with two SDR26 connectors for up to two cameras in base mode, or one camera in medium to extended full mode (up to 850 MB/s total in a PCIe Gen2 slot). The single width XMC board is compliant to VITA 42.0, 42.3 standards. […]
Read more »
