PCIe RF Digitizer and Tuner
The RFx is a multichannel RF tuner and digitizer on a low-profile, low-SWaP PCIe 3.0 board. It has two RF analog inputs with multiple digital tuners per RF input. Each RF tuner provides a 125 MHz complex baseband signal, downconverted from a 0.4–6.0 GHz signal. The baseband signal is digitized by a 14- or 16-bit... Read more »
Xilinx Virtex 4 SX | L-band and IF receiver

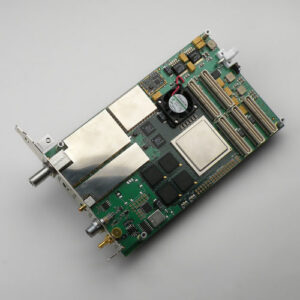

The SRXL2 is a mezzanine board that pairs with an EDT main board to receive and process the following inputs: L-band inputs of 900 to 2250 MHz IF inputs of 160, 140, 70, or 21.4 MHz IF inputs below 90 MHz with a direct sampling path Any of the above L-band and IF inputs simultaneously... Read more »
Xilinx Spartan 3 | IF and L-band receiver

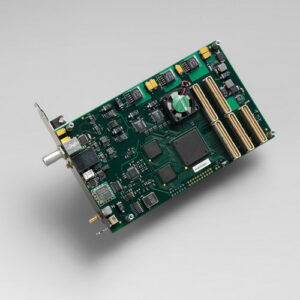

The SRXL is a mezzanine board that pairs with an EDT main board (for PCI or PCI Express) to accept simultaneous RF inputs in the L-band range of 925 to 2175 MHz and the IF range of 65 to 225 MHz. Each input is processed with a tunable quadrature down-converter. The resulting baseband I and... Read more »
Xilinx Virtex 6 LX FPGA | IF receiver
