Tactical Edge AI Platform

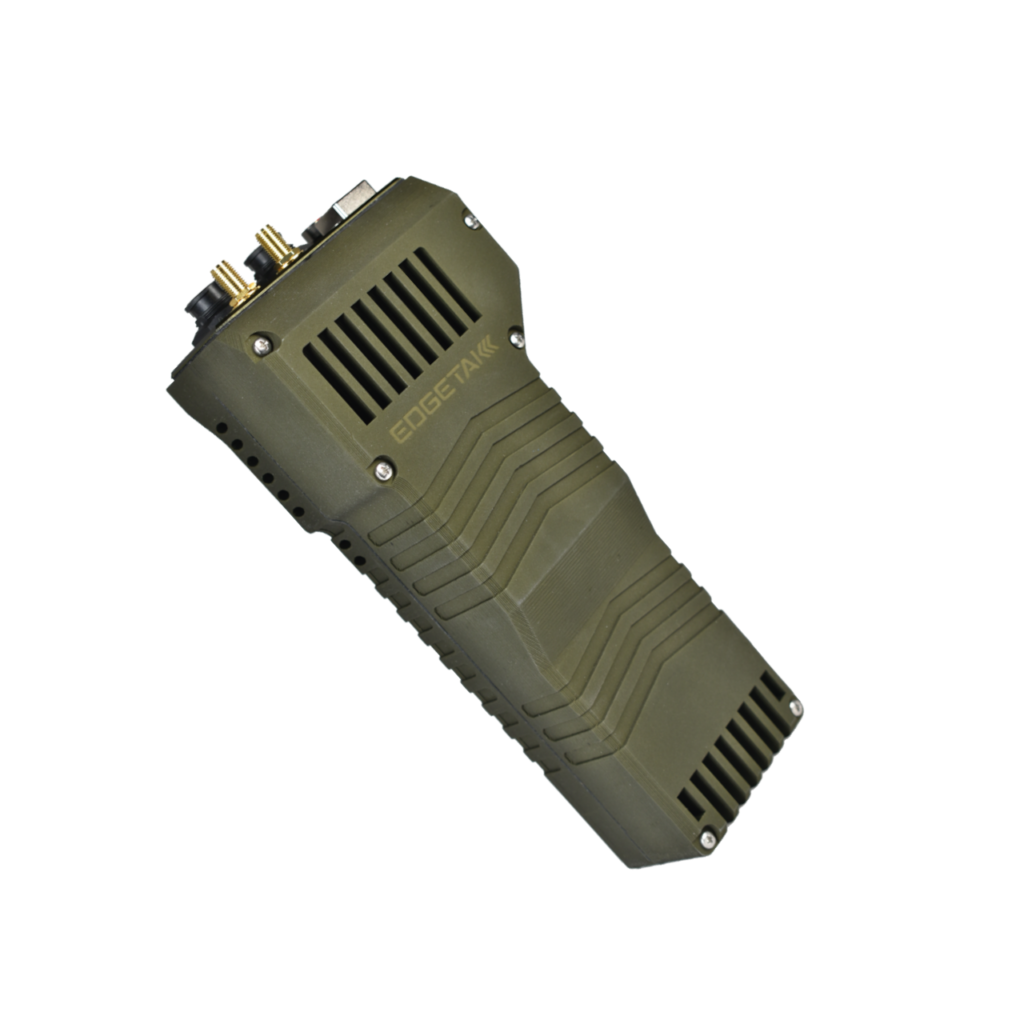

A wearable tactical compute solution that enables advanced digital situational awareness at the edge. EDGETAK is an open system that is OCI compatible and can host ATAK, and an assortment of other tactical applications and AI/ML models for detection of object threats and signals of interest at the soldier/sensor edge. Powered by the NVIDIA ORIN™ NX delivering 100 TOPS for superior edge processing and inference in a small semi-rugged enclosure that is optimized for size, weight, and efficient thermal dissipation.
EDGETAK Advantages
Superior Modularity
Built to integrate focused & robust edge AI and compute into the existing complex and diverse operational kits used military wide.
Leading Return on Investment
Designed for optimal balance between performance and component cost delivering the best value relative to features in the marketplace.
Optimal Kit Fit
Delivers the ability to position and secure the compute into standard radio and magazine pockets already available to the soldier/operator.
Best Thermal Dissipation
EDT uses a novel process building the enclosure heat sink. Delivering a cost effective yet distinctive design setting EDGETAK’s thermal dissipation profile well apart from all other options.
Open Platform / Continuous Improvement
An open platform allowing users to load their own tactical software stack and change internal modules per CONOPs (see specs). All while enabling rapid development of new features and improvements.
Specification
Hardware |
---|
NVIDIA Jetson Orin NX 16GB |
M.2 M-Key with up to 8TB of NVMe storage |
Wifi/Bluetooth or GPS via M.2 E-Key |
2 x SMA |
2 x USB Type C (USB 3.2) |
1GbE RJ45 |
DC Power Input 9V – 16V |
Software |
Jetpack 6.1/L4T 36.4.0 |
Downloads
Jetpack Version | SOM | Date | File |
---|---|---|---|
6.1/L4T 36.4.0 | Orin NX 16GB | 10/21/2024 | edt-edgetak-l4t36.4.0-bsp_v202410.0.tar.gz |
5.1.2/L4T 35.4.1 | Orin NX 16GB | 08/21/2024 | edt-edgetak-orin-nx-16gb-bsp_v1.1.1_L4T35.4.1.tar.gz |
